Be it a civil or industrial construction, a house, a warehouse, a bridge or a road, any project starts with the structural design. Precision and time are some of the most important aspects when we talk about constructions. Thus, an automated line for reinforced concrete filling has essential advantages as compared to the classical methods. The great productivity ensured by the fully automated lines, the high precision given by the numerical controls, the time and labor savings – only one operator is necessary for the execution of finite products – as well as customers’ satisfaction are only few of the reasons why a reinforced concrete builder should choose automatization. A GOOD RESISTANT STRUCTURE NEEDS MODERN TECHNOLOGY! ALFA METAL MACHINERY offers integrated solutions to completely cover the requirements of rebar processing. |
![]() |

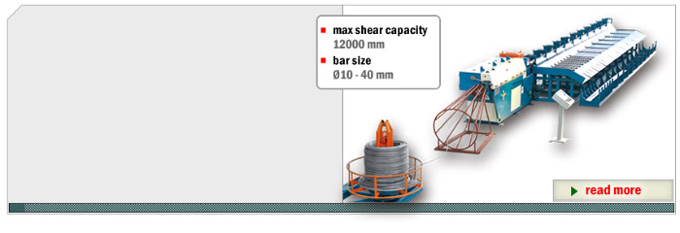

| WIRE STRAIGHTENING AND CUTTING MACHINE |
ENS operation system
Wire smoothing unit Automatic buffer for collecting finished material Air clutch cutting system reaches 600 times per minute. Main electrical components are supplied by SIEMENS and YASKAWA Three gear speed for more type wires Tough straightening unit for long life Automatic aligning unit (patent) Control systems: SIEMENS, MITSUBISHI, PANASONIC. ![]() |

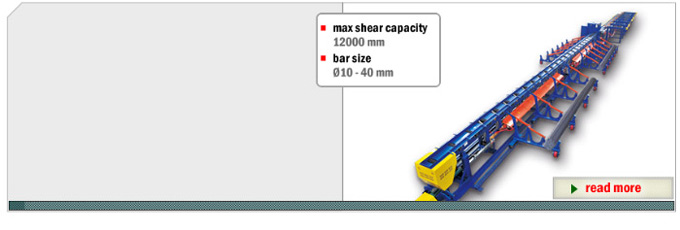

| REBAR CUTTING LINE |
Imported PLC and CNC to ensure high cutting quality
Gradient guillotine with high capacity (patent) Groove blade Automatic clamping device 6 level storage rack Air clutch cutting unit (patent) Multiple baffle for quick positioning and high efficiency (patent) Bi-side discharge Mobile collecting pocket Imported PLC and CNC to ensure high cutting quality ![]() |

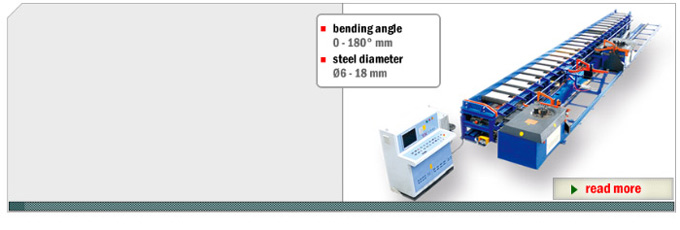

| REBAR BENDING CENTER |
Independent hydraulic driving device
Imported electricity components Mesh bending control system easy for operate Control panel easy for operate Imported hydraulic system Control systems: SIEMENS, MITSUBISHI, PANASONIC ![]() |
| STIRRUP BENDER MACHINE |
Automatic wire feeding system ( CNC )
Germany industrial PC and control system Large storage capacity can save 500 geometric graphics Germany synchronous belt drive ( International patent ) Automatic double wire intake system Adjustment system for wire straightening with memory for different diameter wire Splits cutting arm (cutting blade is separated from cutting arm), reduce spare parts replacement cost Control systems: SIEMENS, MITSUBISHI, PANASONIC ![]() |

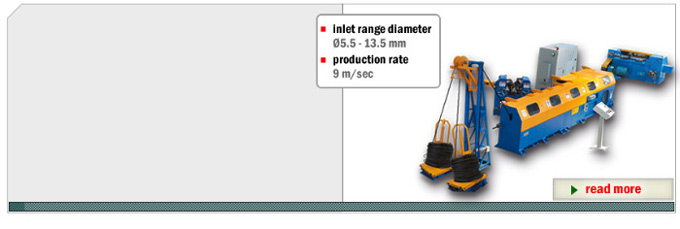

| COLD ROLLING MACHINE |
|
Inner water cooling system for rolling head
SIEMENS control system Main motor braked device Has more rollers design reduce stress Three position design for rolling head Spooler transducer speeder Tungsten carbide rolls Hydraulically pivotal coil formers Control systems: SIEMENS, MITSUBISHI, PANASONIC ![]() |

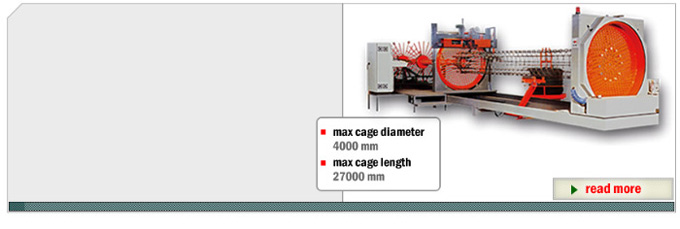

| CAGE MAKING MACHINE |
|
Automatic line wire nipped device
Automatically feeding wire system Special design for prop up a cage, to avoid deforming by cage deadweight in welding Welding robot, high accuracy, high-quality Automatic loading system Mould-type rotated dish, save working and time, easy for change Control systems: SIEMENS, MITSUBISHI, PANASONIC ![]() |

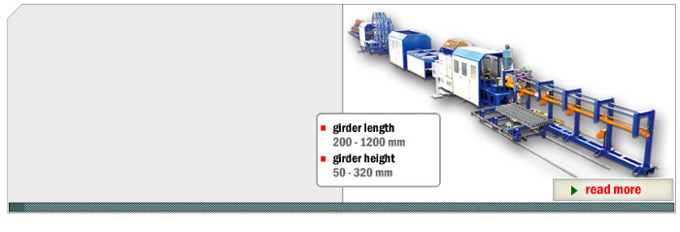

| LATTICE GIRDER WELDING MACHINE |
Stepping system control by CNC servomotor
Automatic pay-off control system User friendly interface, easy operation Forming ( Zig-Zag ) device, high precision and stability All electrical components are supplied by SIEMENS and YASKAWA Girder evacuation & automatic stacking unit Optimize malfunction diagnose warning system Diagonal forming ( Zig-Zag ) device (patent) Electricity components used of SIMENS and YASKAWA ![]() |

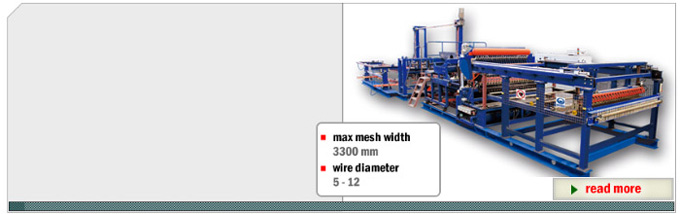

| WIRE MESH WELDING LINE |
|
CNC wheel-step design (patent) Direct circuit to enhance welding quality (patent) Line wire vertical straightening system (patent) Automatic mesh turning, stacking and conveying system Welding pressure stepless adjustation (patent) Automatically high speed cross wire feeding system High speed mesh cutting system, 120 times per min Control systems: SIEMENS, MITSUBISHI, YASKAWA, SCHNEIDER, MOLLER ![]() |
![]() |
